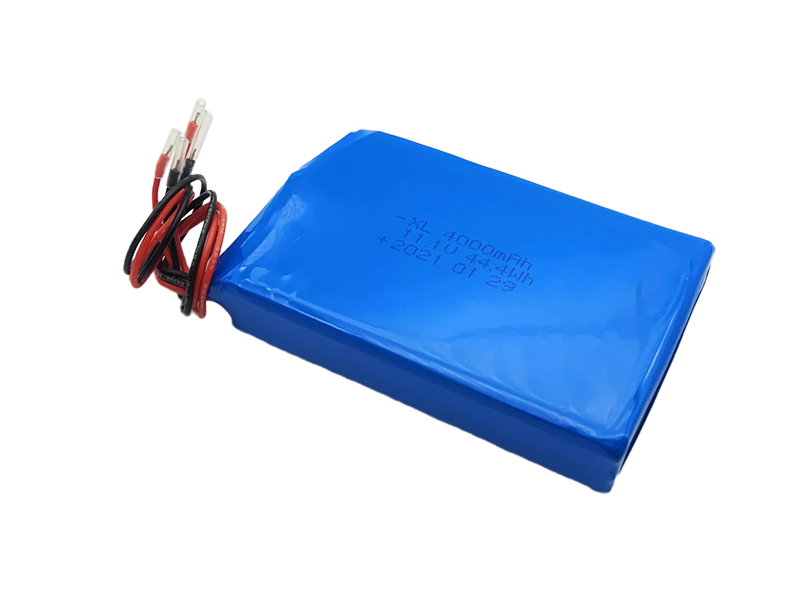

11.1V polymer lithium battery Product model: XL 11.1V 4000mAh
11.1V polymer lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 606090
· Single battery voltage:11.1V
· Nominal voltage after the battery pack is assembled: 11.1V
· Single battery capacity: 4000mAh
· Battery combination: 3 strings and 1 parallel
· Battery voltage range after combination: 7.5V~12.6V
· Battery capacity after combination: 4000mAh
· Battery pack power: 44.4W
· Battery pack size: 18*61*95mm
· Maximum discharge current: <4A
· Instantaneous discharge current: 8A~12A
· Maximum charging current: 0.2-0.5C
· Charge and discharge times: >500 times
· Main chip: (Seiko, TI)
11.1V polymer lithium battery
· Comply with relevant national standards and requirements for batteries
· All finished battery products have been calibrated and tested before leaving the factory. They can be used directly
